For automatic machines.
| Designation | Value | Unit: metric (US) |
|---|---|---|
| Pressure Ratio | 8 : 1 | |
| Maximum Fluid Pressure | 48 (695.7) | bar (psi) |
| Maximum Air Pressure | 6 (87) | bar (psi) |
| Air Consumption | 20.4 (12) | m³/h (cfm) |
| Maximum Temperature | 60 (140) | °C (°F) |
| Cylinder | 240 (8.1) | cc (oz) |
| Sound Level | 76 | dBa |
| Fluid Output at 30 cycles/mn | 7.2 (1.9) | l/min (gal/mn) |
| Free Flow Rate | 14.4 (3.8) | l/mn (gal/mn) |
| Air Inlet | F 3/4 BSP | |
| Fluid Outlet | M 1/2 JIC | |
| Fluid Inlet | M 26 x125 | |
| Number of Cycles per liter of products | 4 | |
| Sealing Packing Lower PEHD | ♦ | |
| Sealing Packing Upper PTFE G - Polyfluid | ♦ | |
| Height | 86.4 (34) | cm (in) |
| Width | 35.6 (14) | cm (in) |
| Depth | 25.4 (10) | cm (in) |
| Wetted Shares: Stainless Steel | ♦ | |
| Weight | 27 (59.5) | kg (lbs) |
| Designation | Setup | Atomization air regulator | Air regulator fluid pressure | Suction rod | Drain rod | Pump output filter | Part number |
|---|---|---|---|---|---|---|---|

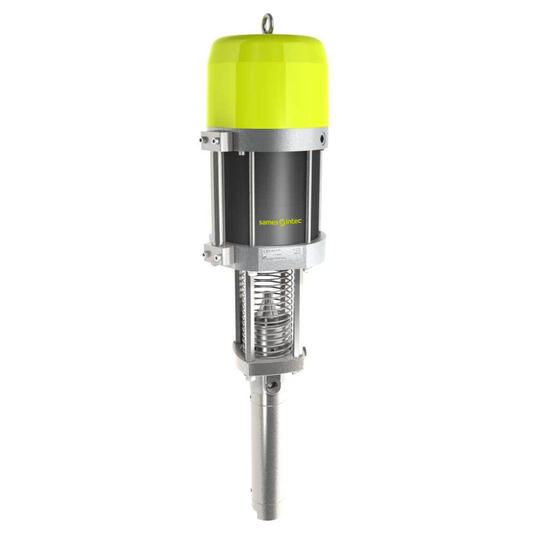

| 08C240 BARE PUMP | Bare | - | - | - | - | - | 151791000 |
| 08C240 WALL-MOUNTED | Wall-mounted | ♦ | ♦ | - | - | - | 151791100 |
| 08C240 WALL-MOUNTED WITH FILTER | Wall-Mounted | ♦ | ♦ | ♦ | ♦ | ♦ | 151791200 |
| 08C240 CART-MOUNTED | Cart-Mounted | ♦ | ♦ | ♦ | ♦ | ♦ | 151791400 |
| 08C240 TURBO WALL-MOUNTED | Turbo Wall-Mounted | ♦ | ♦ | - | - | - | 151798100 |
| Designation | Details | Part number | |
|---|---|---|---|
| Stainless steel drain rod Ø16 elbowed F18 x 125 | SST Drain rod with Ø16 hose and fitting 18x125 | 1 | 049596000 |
| Stainless steel Suction rod Ø23 M26 plunging tube length elbowed 570 mm | SST Suction rod with Ø25 hose - fittings 26x125 - 600mm length | 2 | 149596150 |
| Stainless steel Suction rod Ø23 M26 plunging tube length 1000mm elbowed (for 200 liters drums) | SST Suction rod with Ø25 hose - fittings 26x125 - 1000mm length recommended for 200L drums | 3 | 149596160 |
| Pump Mounting Plate with straps | Reinforced bracket (with straps) to mount the pump on a wall | 4 | 056100199 |
| Two Post Cart w/o plate | Spare cart (2 handles) | 5 | 051221000 |
| Designation | Details | Part number | |
|---|---|---|---|
| Seal kit for 1000-4 air motor including reversing-block seals | Seal kit for the air motor | 1 | 146270991 |
| Full maintenance kit for 1000-4 air motor including reversing-block seals | Service kit (Seal kit + Air Motor components) for the air motor | 2 | 146270995 |
| Seal kit for C240 hydraulic section (Chevron/UHMW) | Seal kit for the fluid section | 3 | 144970090 |
| Full maintenance kit C240 hydraulic section (Chevron/UHMW) | Service kit (Seal kit + Fluid Section components) for the fluid section | 4 | 144970095 |
