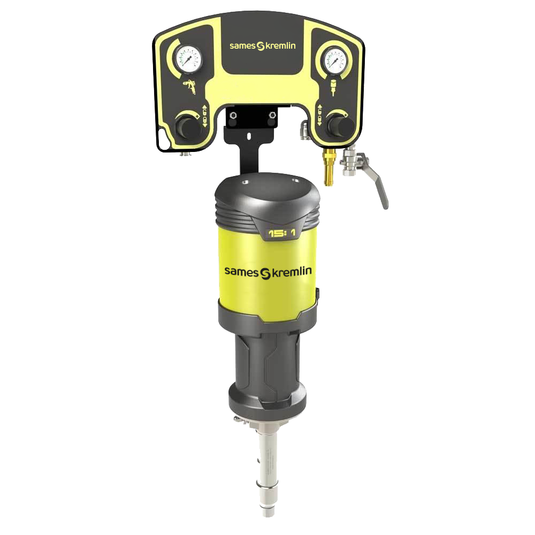

The 15C50 compact AIRMIX® paint pump is recommended to handle all types of materials ranging from medium to low viscosity. The 15C50 AIRMIX is particularly suited for 1 or 2 AIRMIX®® gun applications and heated spray systems. Create various AIRMIX & AIRMIX®® electrostatic configurations with our large choice of accessories to meet all customer requirements.
| Designation | Value | Unit: metric (US) |
|---|---|---|
| Pressure Ratio | 15/1 | |
| Maximum Fluid Pressure | 90 (1305) | bar (psi) |
| Maximum Air Pressure | 6 (87) | bar (psi) |
| Air Consumption | 3.55 (2.09) | m³/h (cfm) |
| Maximum Temperature | 60 (140) | °C (°F) |
| Cylinder | 50 (1.68) | cc (oz) |
| Weighted Sound Level | 74.9 | dBA |
| Recommended Air Pressure | 2 - 5 (29 - 72.5) | bar (psi) |
| Fluid Output at 30 cycles/mn | 1.5 (0.4) | l/min (gal/mn) |
| Fluid Output at 20 cycles/mn | 1.0 (0.26) | l/mn (gal/mn) |
| Fluid Volume per Cycle | 50 | cc |
| Free Flow Rate | 3.0 (0.78) | l/mn (gal/mn) |
| Fluid Output at 15 cycles / mn | 0.75 (0.2) | l/mn (gal/mn) |
| Air Consumption at 30 cycles/mn at 4 bar (60 psi) | 3.55 | m³/h (cfm) |
| Displacement Per Cycle | 50 (3.05) | cc (cubic inch) |
| Motor Type | 420-4 | |
| Air Inlet | F3/8" BSP / F3/8" BSP | |
| Fluid Outlet | F 3/8 " NPS / M1/2 JIC | |
| Fluid Inlet | F 1/2 " BSP / M26x125 | |
| Number of Cycles per liter of products | 20 | |
| Sealing Packing Upper and Lower GT polyethylene | ♦ | |
| Height | 58.5 (23) | cm (in) |
| Width | 32 (12.6) | cm (in) |
| Depth | 17 (6.69) | cm (in) |
| Wetted Parts: Hard Chrome SST, Standard SST, Carbide | ♦ | |
| Weight | 8 (17.6) | kg (lbs) |
| Designation | Fluid inlet fitting | Cartridge | Suction rod | Drain rod | Atomizing air regulator | Air regulator fluid pressure | Pump outlet filter | Part number |
|---|---|---|---|---|---|---|---|---|
| Wall mounted 15C50 F 1/2 BSP with Air plate | F 1/2'' | GT | - | - | ♦ | ♦ | - | 151143000 |
| Wall mounted 15C50 M26x125 with Air plate | M 26x125 | GT | - | - | ♦ | ♦ | - | 151143050 |
| Wall-mounted 15C50 with filter and rods | M 26x125 | GT | Ø23 | ♦ | ♦ | ♦ | ♦ | 151143250 |
| Wall-mounted 15C50 with filter | M 26x125 | GT | - | ♦ | ♦ | ♦ | ♦ | 151143450 |
| Designation | Part number | ||
|---|---|---|---|
| Wall-mounted totem | 151140240 | ||
| Dismountable trolley | 151241000 | ||
| Dismountable trolley with drum table | 151242000 | ||
| Gravity hopper 6 liters | 151140230 | ||
| Stainless steel Suction rod Ø23 M26 plunging tube length elbowed 570 mm | 149596150 | ||
| Stainless steel Suction rod Ø23 M26 plunging tube length 1000mm elbowed (for 200 liters drums) | 149596160 | ||
| Stainless steel drain rod Ø16 elbowed F18 x 125 | 049596000 | ||
| Fluid filter Mesh 6 3/8 (Inlet F1/2"JIC - Outlet M1/2"JIC) | 155580600 | ||
| Air plate with 2 air regulators | 151140070 |
| Designation | Gun type | Two gun manifold | Tip | Hoses included | Swivel fitting | Mounting | Packing material | Output filter | Suction rod | Part number |
|---|---|---|---|---|---|---|---|---|---|---|
| KIT 15C50 WALL/M WO ROD & FILTER & XCITE®+120 & TWIST SWIVEL | Xcite®+ 120 | - | - | 7.5 m (24 ft) | • | Wall | GT | • | - | 151265052 |
| KIT 15C50 WALL/M +ROD & FILTER & XCITE®+120 & TWIST SWIVEL | Xcite®+ 120 | - | - | 7.5 m (24 ft) | • | Wall | GT | • | Ø 23 | 151265053 |
| Airmix® PACK 15C50 W/M FILTER SUC Xcite®+Light120 12.114 H7.5M | Xcite®+ 120 Light | - | 12-114 | 7.5 m (24 ft) | • | Wall | GT | • | Ø 23 | 151143600 |
| KIT 15C50 WALL/M PMP & ROD & XCITE®+120 & TWIST SWIVEL | Xcite®+ 120 | - | - | 7.5 m (24 ft) | • | Wall | GT | - | Ø 23 | 151265050 |
| PACK 15C50 2G W/M MBA SUC D25+FIL 2/XCITE®+120+2/09114+2/H7.5 | 2 x Xcite®+ 120 | • | 2 x 09-114 | 2 x 7.5 m (24 ft) | 2 | Wall | MB-A | • | Ø 23 | 151143650 |
| Designation | Part number | |||
|---|---|---|---|---|
| Servicing kit for 245-4 air motor | 144140190 | |||
| Reversing kit | 144130191 | |||
| GT Cartridge kit | 144130205 | |||
| GT cartridge and piston kit | 144135291 | |||
| MB-A Cartridge kit | 144135365 | |||
| MB-A cartridge and piston kit | 144135389 | |||
| Servicing kit C50 fluid section | 144135237 |
