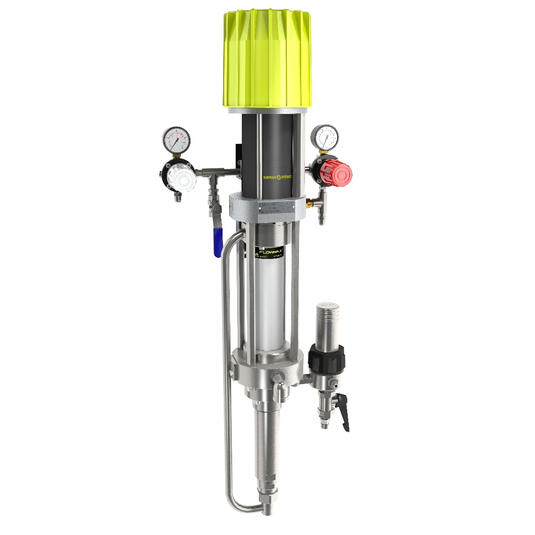

20F50 Airmix® Flowmax Paint Pump
This 20F50 paint pump uses Flowmax® technology for total sealing, performance and extended lifetime for Airmix® applications
- Unique Flowmax® Bellows technology
- Extended lifetime
- Easy maintenance
| Designation | Value | Unit: metric (US) |
|---|---|---|
| Pressure Ratio | 20/1 | |
| Maximum Fluid Pressure | 120 (1740) | bar (psi) |
| Maximum Air Pressure | 6 (87) | bar (psi) |
| Maximum Temperature | 50 (122) | °C (°F) |
| Sealing Packing Bellows Polyethylene | ♦ | |
| Cylinder | 50 | cc (oz) |
| Sound Level | 80 | dBa |
| Fluid Output at 30 cycles/mn | 1.5 (0.4) | l/min (gal/mn) |
| Air Consumption at 30 cycles/mn at 4 bar (60 psi) | 10.8 (6.4) | m³/h (cfm) |
| Number of Cycles per liter of products | 20 | |
| Height | 99 (36) | cm (in) |
| Width | 48 (19) | cm (in) |
| Depth | 28 (11) | cm (in) |
| Wetted Shares: Stainless Steel | ♦ | |
| Weight | 22 (48.5) | kg (lbs) |
| Designation | Version | Fluid inlet | Section rod | Drain rod | Paint filter | Air regulator | Seal | Part number |
|---|---|---|---|---|---|---|---|---|
| 20F50 | Wall | M 26x125 | 25 mm (1'') | ♦ | ♦ | 2 | GT + GT | 151771200 |
| 20F50 | Troley | M 26x125 | 25 mm (1'') | ♦ | ♦ | 2 | GT + GT | 151771400 |
| 20F50 | 151771000 | |||||||
| 20F50 | 151771100 |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| Stainless steel drain rod Ø16 elbowed F18 x 125 | 049596000 | ||||
| Two Post Cart w/o plate | 051221000 | ||||
| Pump Mounting Plate with straps | 056100199 | ||||
| Stainless steel Suction rod Ø23 M26 plunging tube length elbowed 570 mm | 149596150 | ||||
| Stainless steel Suction rod Ø23 M26 plunging tube length 1000mm elbowed (for 200 liters drums) | 149596160 | ||||
| Gravity hopper 6 liters | 151140230 | ||||
| AIR REGULATOR KIT FOR AIRMIX SPRAYING | 151740200 | ||||
| Single post cart | 151730140 |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| SEAL KIT FOR HYD F50 | 144950291 | ||||
| SERVICING KIT FOR HYD. F50 | 144950292 | ||||
| Seal kit for 500-4 air motor | 146260990 | ||||
| Maintenance kit for 500-4 air motor | 146260995 |
