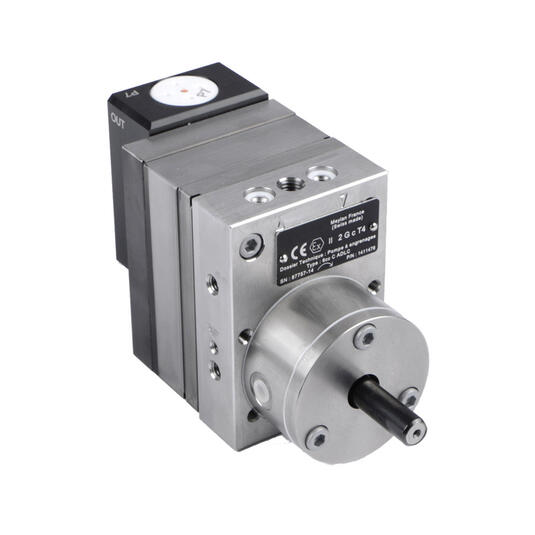

The gear pump is used to supply liquid paint (either solvent or water-based) for all Sames automatic sprayers.
The gear pump is used to supply liquid paint (either solvent or water-based) for all Sames automatic sprayers.
This type of pump comes in 6 capacities defined by the number of cm3 per revolution:
• 0.3 cm3 / rev • 2.4 cm3 / rev
• 0.6 cm3 / rev • 6 cm3 / rev
• 1.2 cm3 / rev • 10 cm3 / rev
The choice is made with respect to the target flow & the rotation speed bracket. It is recommended to run between 30 & 80 rpm.
| Designation | Value | Unit: metric (US) |
|---|---|---|
| ATEX Certification | II 2 G Ex h IIA T4 Gb |
| Designation | Capacity | Length | Height | Width | Weight | Max pressure | Rotation speed | Accuracy | Part number |
|---|---|---|---|---|---|---|---|---|---|
| 2K Gearpump 10cc | 910026690 | ||||||||
| 2K Gearpump 6cc | 910026689 | ||||||||
| 2K Gearpump 2.4cc | 910026688 | ||||||||
| 2K Gearpump 1.2cc | 910026687 | ||||||||
| 2K Gearpump 0.6cc | 910026686 | ||||||||
| 2K Gearpump 0.3cc | 910026685 |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| 2K Gearpump Complete Sealing unit | 270000091 | ||||
| 2K Gearpump Seal kit for sealing system included for 0.3 and 0.6cc | 270000093 | ||||
| 2K Gearpump Seal kit for sealing system included for 1,2 to 10cc | 270000090 |
