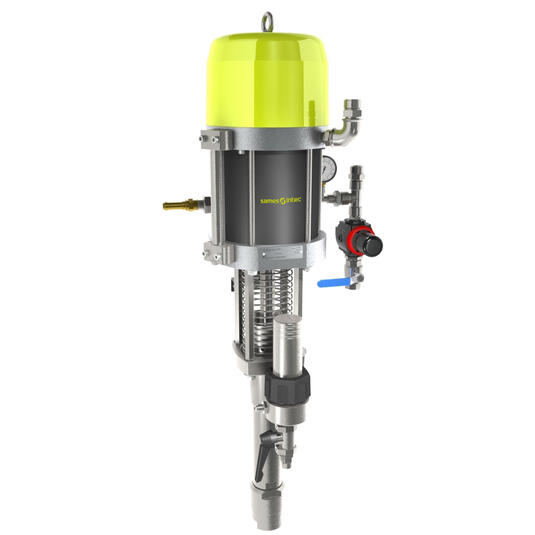

| Designation | Value | Unit: metric (US) |
|---|---|---|
| Pressure Ratio | 40:1 | |
| Maximum Fluid Pressure | 240 (3480) | bar (psi) |
| Maximum Air Pressure | 6 (87) | bar (psi) |
| Air Consumption | 43.2 (25.4) | m³/h (cfm) |
| Maximum Temperature | 60 (140) | °C (°F) |
| Cylinder | 100 (3.4) | cc (oz) |
| Sound Level | 80 | dBa |
| Fluid Output at 30 cycles/mn | 3 (0.8) | l/min (gal/mn) |
| Air Consumption at 30 cycles/mn at 4 bar (60 psi) | 43.2 (25.4) | m³/h (cfm) |
| Air Inlet | F 3/4" BSP | |
| Fluid Outlet | F 1" BSP | |
| Fluid Inlet | F 3/8 NPS | |
| Hard Chrome Stainless Steel, Wetted Parts | • | |
| Weight | 22 (48.5) | kg (lbs) |
| Designation | Version | Fluid inlet | Section rod | Drain rod | Paint filter | Air regulator | Seal | Part number |
|---|---|---|---|---|---|---|---|---|
| 40C100 | Troley | M 26x125 | 25 mm (1'') | ♦ | ♦ | 1 | GT + PTFEG | 151785500 |
| 40C100 | wall | M 26x125 | 25 mm (1'') | ♦ | ♦ | 1 | GT + PTFEG | 151785550 |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| Two Post Cart w/o plate | 051221000 | ||||
| Pump Mounting Plate with straps | 056100199 | ||||
| AIR REGULATOR KIT FOR AIRMIX SPRAYING | 151740200 | ||||
| LARGE DIAM SUCTION ROD SST 1" | 921270101 | ||||
| Single post cart | 151730140 |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| SET OF SEALS FOR FLUID SECT C50 WB | 144950991 | ||||
| SERVICING KIT FOR FLUID SECT C50 WB | 144950992 | ||||
| Seal kit for 2000-4 air motor including reversing-block seals | 146270990 | ||||
| Full maintenance kit for 2000-4 air motor including reversing-block seals | 146270996 |
