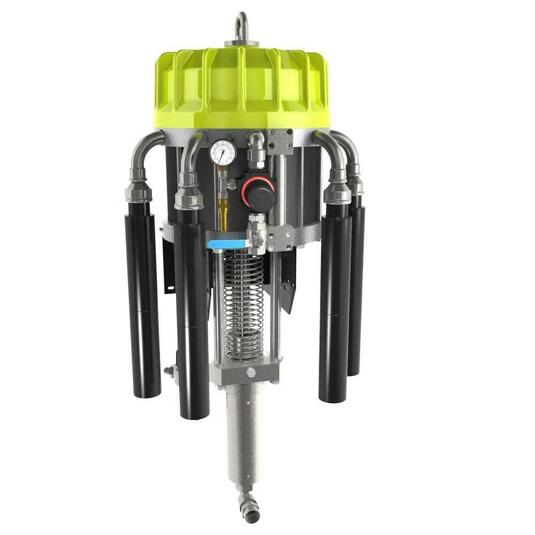

Sames | 65C260 Airless Paint Pump

Description

All stainless steel construction
High output pump
Very simple and fast servicing

(OBSOLETE Product : replaced by 60C260 pump - contact us for more detail)

► Technical manual

Performance

♦ High output gun to feed one or several guns
♦ Designed to operate with long hose length

Productivity

♦ Ideal for most materials
♦ Low maintenance and ease of use

Sustainability

♦ Sleek design with minimal parts.
♦ Improved wear resistance thanks to PTFE graphited and polyfluid seals.
♦ Exceptional reliability thanks to a triple chrome coated piston

For Airless applications and automatic machines.

Technical data table

Designation	Value	Unit: metric (US)
Pressure Ratio	65/1
Maximum Air Pressure	6 (87)	bar (psi)
Sound Level	78	dBa
Fluid Output at 20 cycles/mn	4.8 (1.4)	l/mn (gal/mn)
Fluid Volume per Cycle	240	cc
Free Flow Rate	14.4 (6.8)	l/mn (gal/mn)
Air Inlet	F 3/4" BSP
Fluid Outlet	M 3/4" JIC
Fluid Inlet	M 38x150
Hard Chrome Stainless Steel, Wetted Parts	♦
Number of Cycles per liter of products	4
Sealing Packing Upper GT or PU	♦

Equipment

Designation	Version	Fluid inlet	Section rod	Drain rod	Paint filter	Air regulator	Seal	Part number
65C260 TROLLEY-MOUNTED PUMP + FILTER	Trolley	M 26x125	25 mm (1'')	-	♦	1	PE + GT	151880700
65C260 WALL-MOUNTED PUMP + FILTER + ROD								DISCONTINUED

Documents

Select all documents

Catalog Airless Range Sames (English version)

Catalog airless® range sames kremlin

Format : application/pdf
Size : 10Mo

Select the document

General Catalog (For North America only) Sames

General Catalog North America

Format : application/pdf
Size : 3Mo

Select the document

Instruction Manuals

Select all documents

65C260 | User manual

Format : application/pdf
Size : 2Mo

Select the document

Distributor retrofit procedure – motor 8000

Format : application/pdf
Size : 1Mo

Select the document

Materials

Primer Epoxy

Epoxy primer/sealer is a non-porous finish that is typically recommended as the first base coat over bare steel.

Primer Epoxy Multi-Component

Epoxy primer/sealer multi-component is a non-porous finish base mixed with a hardener that is typically recommended as the first base coat over bare steel.

Primer Polyurethane Multi-Component

Designed to hide profile & surface imperfections, multi-component polyurethane primers & sealers improve adhesion of top coats to the substrate due to the addition of a hardener.

Primer Water-Based

Designed to hide profile & surface imperfections, water-based primers & sealers are environmentally friendly.

Primer Polyurethane

Designed to hide profile & surface imperfections, polyurethane primers & sealers promote adhesion of top coats to the substrate.

Anti-Corrosion Water-Based

Some anti-corrosion materials are available in water-based versions. These green paints have a longer dry time, but meet most environmental requirements & have excellent protective qualities.

Anti-Corrosion Epoxy Multi-Component

The Anti-Corrosion Epoxy Multi-Component product is highly resistant to marine & industrial environments, buried conditions, ground water, effluents, salt water & a wide range of oils & chemicals.

Anti-Corrosion Epoxy Free Solvent

Solvent-free epoxy coatings are designed for long-term protection of steel & concrete structures against corrosion, abrasion & chemical attack. Operating temperature ranges from –40F to 1040F.

Anti-Corrosion Polyurethane Multi-Component

A two-component efficient coating product, used as first layer on metallic surfaces & in a wide range of painting systems. Forms an excellent quality anti-corrosive polyurethane film, ensuring the adherence between the surface & the next layer of the painting process.

Anti-Corrosion Epoxy

Anti-Corrosion Epoxy is applied for active anti-corrosive & anti-rust protection of iron & steel surfaces that are to be coated. It is extremely hard & resistant to friction. It is particularly resistant to diluted acids, alkalis, petroleum products, some solvents, water, sea water, and more.

Anti-Corrosion Epoxy High Solid

Used for the steel structures of steel pipeline, steel frame, bridge & plant facilities for effective, long-term substrate protection.

Anti-Corrosion Polyurethane

Polyurethane coatings are often used for the corrosion protection of steel because they are particularly economical to apply. They dry quickly & can therefore be over-coated in short intervals. They can also be applied independently of the weather conditions & are resistant to impact.

CARC Water-Based

Chemical Agent Resistant Coating (CARC) is available in a water-based solution for environmental protection.

CARC Epoxy Multi-Component

Chemical Agent Resistant Coating (CARC) is a paint commonly applied to military vehicles to provide protection against chemical & biological weapons. The surface of the paint is engineered to be easily decontaminated after exposure to chemical warfare & biological warfare agents. The paint is also resistant to damage & removal by decontaminating solutions.

CARC Polyurethane Multi-Component

Chemical Agent Resistant Coating (CARC) can be two-component polyurethane paint commonly applied to military vehicles to provide protection against chemical & biological weapons.

UV Material Epoxy Multi-Component

UV-resistant epoxy systems mixed with hardener cure faster & in moist conditions.

UV Material 100% Solid

UV coatings can be formulated up to 100% solids so that they have no volatile component that contributes to pollution.

UV Material Water-Based

Water-based UV coatings can be considered aesthetically equivalent to bi-component acrylic & polyurethane solvent-based coatings. The range is composed of both pigmented & transparent products.

UV Material Epoxy

UV curable epoxy systems do not require the addition of curing agents. They cure within minutes, or even seconds, and have unlimited working times.

UV Material Polyurethane Multi-Component

The UV polyurethane multi-components are especially designed for very strong UV stability. Mixing with hardener gives very high durability & UV resistance.

UV Material Polyurethane

The UV polyurethanes are especially designed for UV stability, The coating is long lasting, offers excellent substrate protection, provides an attractive finish & is user-friendly.

Top Coat Polyurethane Multi-Component

Polyurethane Top Coat is a two- or three-pack isocyanate-cured polyurethane that gives a durable, high gloss finish. Isocyanates included in the hardener are moisture-sensitive & need a specific process for insulating the circuit.

Top Coat Epoxy

Top Coat Epoxys are used for decorative flooring applications, such as Terrazzo flooring, chip flooring & colored aggregate flooring.

Top Coat Water-Based

Water-based polyurethane is popular because of its low odor & low toxicity. It goes on clear without adding a faint color like oil-based versions do & it dries much faster.
