| Designation | Value | Unit: metric (US) |
|---|---|---|
| Weight | 1 (2.2) - 2.6 (5.7) | kg (lbs) |
| Inlet Pressure Maximum | 6 (87) - 40 (579.7) | bar (psi) |
| Outlet Pressure - Regulated Range | 0.5 (7.2) - 4 (58) | bar |
| Air Pressure Maximum | 6 (87) | bar |
| Max Working Temperature | 50 (122) | °C |
| Height | 7.3 (2.9) | cm (in) |
| Diameter | 8.5 (3.3) | cm (in) |
| Wetted Shares: Stainless Steel, PTFE, Carbide | ♦ | |
| Product Minimum Flow Rate (in a wide passage) | 0.2 (0.1) | l/mn (gal/mn) |
| Product Maximum Flow Rate (in a wide passage) | 1.5 (0.4) | l/mn (gal/mn) |
| Designation | Weight (kg) | Ball | Fluid inlet | Fluid outlet | Air inlet | Max inlet pressure (Bar) | Part number |
|---|---|---|---|---|---|---|---|

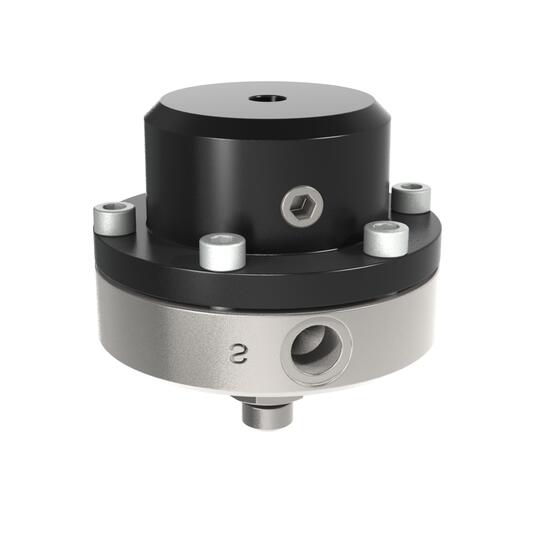

| Piloted regulator - small passage | 1 | Ø 5 SST | F 1/4 NPS | F 1/4 NPS | F 1/8 NPS | 40 | 155610230 |
| Piloted stainless steel pressure regulator for abrasive materials - small passage | 2.6 | Ø 5 carbide | F 3/8 NPS | F 3/8 NPS | F 1/4 NPS | 40 | 155610520 |
| Piloted stainless steel pressure regulator - large passage | 1 | Ø 9 SST | M 1/4 BSP + (M18x125 or M3/8 NPS or M3/8 BSP) | F 1/4 BSP | F 1/8 BSP | 6 | 155610050 |
| Designation | Details | Part number |
|---|---|---|
| BRACKET - REGULATOR & PURIFIER 1/4 | Bracket to fix the regulator | 016200010 |
| GAUGE PACKAGE | Spare gauge to check the pressure | 155610570 |
| Designation | Details | Part number |
|---|---|---|
| REPAIRING PACK FR LP FLUID REGULATOR | Pack of spare parts (piston + bearing) | 155610110 |
| SERVICING KIT FR PILOTED LP REG. SMALL PASSAGE FOR FLUID PRO | Maintenance pack for small passage | 155610113 |
