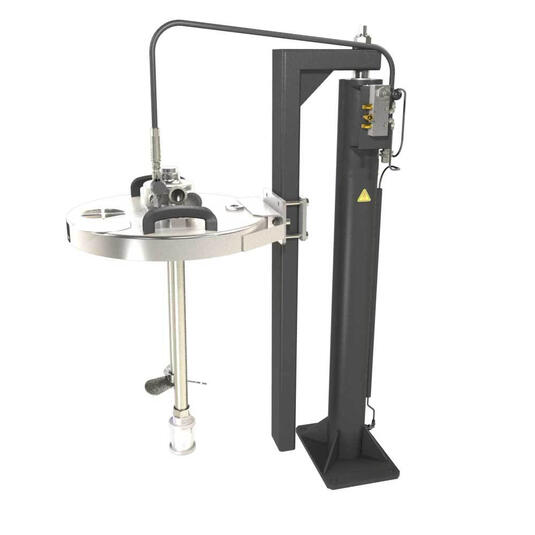

Cyclix 20-40 Drum Cover Agitators

Cyclix gear drive agitators for open top 20-40 liter drum feature a stainless steel cover mounted on a single post elevator for quick material changes.

Agitation for best results

Constant quality of mixed materials
Stainless steel wetted parts
High ROI - no product lost

Pulvérisation-FPro-rt.jpg FPRO spraying application Products & Solutions > Products Featured application picture, Airspray

Associated informations

Description

Constant quality of mixed materials
Stainless steel wetted parts
High ROI - no product lost

Performance

♦ Bi-directional jack for fast lift of stainless steel agitator cover (3 positions available)
♦ Quick material change
♦ Lubricated air motor - compact with adjustable speed and safe operation

Productivity

♦ User-friendly
♦ Agitator disengaged during elevator movement

Sustainability

♦ Stainless steel cover is compatible with all materials
♦ Suction and return tubes benefits suitable for re-circulating

This elevator-agitator for 20-40 drums features a double-effect jack for a fast lift of a stainless steel cover fitted for a quick material drum change. The cover is equipped with a motorized agitator fitted with blades for low viscosity materials and a full stainless steel rod. The elevator is coming on a large fixing plate which makes it very stable and easy to install in paint kitchens, existing installations or an essential component of new installations

Technical data table

Designation	Value	Unit: metric (US)
Length	696 (27)	mm (in)
Height	1024-1500 (40-59)	mm (in)
Width	400 (15.7)	mm (in)
Recommended Fluid Pressure	60 (140)	bar (psi)
Rotation Speed	150	t/mn (rpm)
Torque at 100 rpm	2.2	Nm
Maximum Air Consumption	43.2	m3/h (cfm)
Maximum Pressure	6.9 (100)	bar (psi)
Max power	0.75	kW
Stopping torque	2.1	Nm

Equipment

Designation	Drum size	Agitator rod lenght (mm)	Paddle diameter (mm)	cover diameter (mm)	Part number
COVER	20-40 L / 5-11 Gl			400	154261600
40L AGITATOR	20-40 L / 5-11 Gl	400	134		154261700
SUCTION	20-40 L / 5-11 Gl				154261800
40l ram					151081000

Accessories

Designation					Part number
2 L.DRUM - OIL HP 150 FOR DIAPHRAGM PUMP & OILER					149990017
DRUM ROLLER PLATE 200 L ONLY					151098100
ARI SUPPLY ASSEMBLY					154261930
SLOTTED PADDLE					154261952
AIR FILTER 1/4					154261996
AIR LUBRICATOR 1/4 + SUPPORT					154261997

Spare Parts

Designation					Part number
MOTOR GAST 2AM					146020400
3 WAY VALVE RAM CONTROL					154261910
PACK OF SEALS FOR RAM					154261915
PACK OF 2 STRAINERS					154261940
MOTOR SPARE PART KIT					903010302
