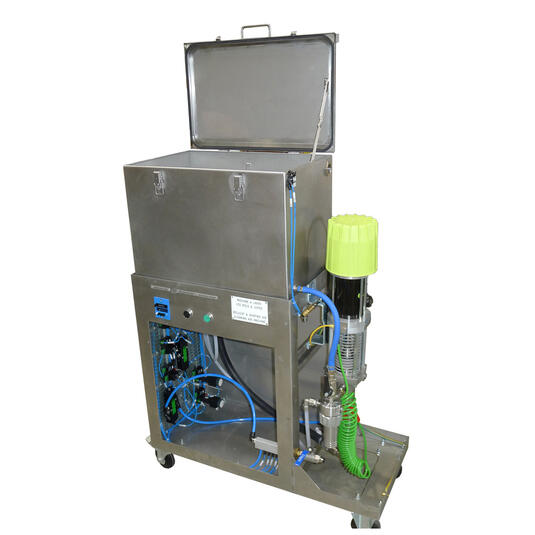

The washer is designed to clean the bell cups and shaping air shrouds of all Sames electrostatic bells.
The washer is designed to clean the bell cups and shaping air shrouds of all Sames electrostatic bells.
| Designation | Value | Unit: metric (US) |
|---|---|---|
| Width | 100 | mm (in) |
| Rotation Speed | 470 | t/mn (rpm) |
| Torque at 100 rpm | 1120 | Nm |
| Maximum Air Consumption | 980 | m3/h (cfm) |
| Max Air Pressure (for large diameter) | 6 | bar (psi) |
| Stainless Steel Construction | SSC | |
| ATEX Certification | II 2 G Ex h IIA T3 Gb |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| Immersion washer for bell cup & air shroud | 910001851SAV |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| Holder assembly for air shroud THV | 910004815 | ||||
| Holder assembly for mangetic bell cups THV | 910004800 |
