Sames | Nanobell 805 Robotic Electrostatic Rotary Bell Atomizer

Description

Superior Finishing Application
Enhanced Productivity
Reliable for Improved Maintenance

Performance

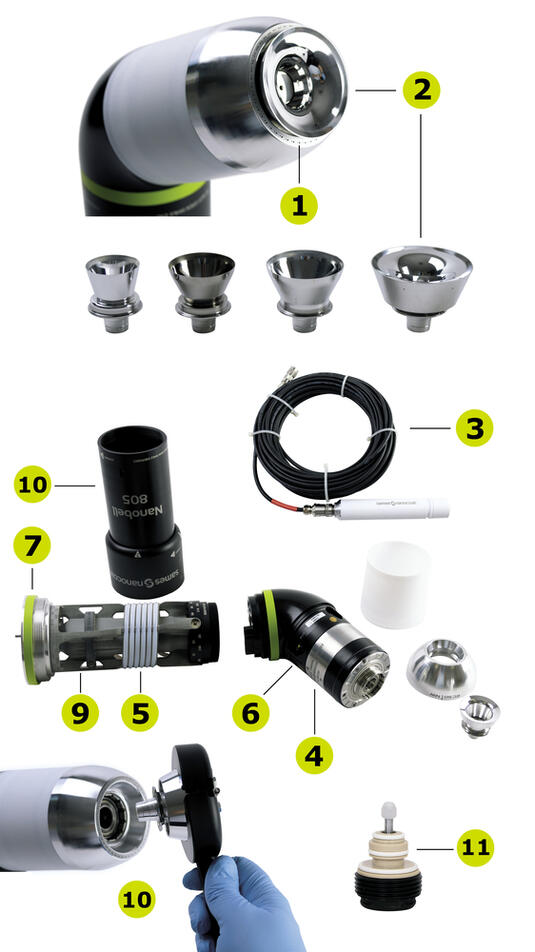

1 Patented NW (Narrow to Wide) air shrouds for unsurpassed transfer efficiency
2 Renowned range of high-speed magnetic bell cups for uniform atomization
3 High Voltage Unit properly scaled and controlled for outstanding wrap-around effect
4 Brand new air motor T8 for High Rotation Speed allowing fine atomization

Productivity

4 The T8 air motor provides constant production with accurate flow and paint applications
5 Optimized fluid circuits for incomparable application efficiency
6 Simple spray head for easy operation without specific skills
7 Lightweight and compact to fit on smaller systems and robots to keep productivity at its best

Sustainability

8 Patented magnetic fixing of bell cups ensures easy, fast, and safe installations
9 Integrated 3D print technology allowing multi-function in one light and simple part
10 Quick disconnect system allowing fast & easy dismantling
11 Newly patented Nano5 valves are highly durable
♦ Bell cups available in Aluminum as Standard with a Titanium option offering extended lifetime

Superior Finishing Application

Sames has more than 50 years of experience and knowledge in bell spraying technology. The Nanobell 805 equipped by T8 air motor provides constant production with accurate flow and high bell speed rotation for fine and homogenous droplets.

In addition, Straight & Vortex air combination helps to drop the material smoothly to refine the finishing.

Enhanced Productivity

High productivity through the hollow wrist robotic support fitting large painting robots and the continuous application of solvent-borne as well as waterborne products.

On the other hand, GNM300 High Voltage Control Module is perfectly managing the high voltage performances to generate an outstanding wrap-around effect which allow to increase robot speed.

The straight and vortex air combination is fully adjustable for a variable pattern size to fit the shape of the part and adjust the production constantly.

Reliable for Improved Maintenance

High-level maintenance thanks to reliable components like robust T8 air motor, high voltage unit and robotic fittings from our expertise for reduced downtimes, tough use and long lifetime.

In parallel, our BSC300 Bell Speed Controller flawlessly regulates the speed of the air motor for the best centrifugal effect drastically reducing overspray to avoid cleaning stoppages.

Technical data table

Designation	Value	Unit: metric (US)
Weight	5.5 (11)	kg (lbs)
Viscosity Scale (min-max)	15 - 65	seconds FORD Cup#4
Standard Material Supply Pressure	6-8 (87-116)	bar (psi)
Maximum Material Pressure	10 (145)	bar (psi)
Minimum Paint Flow	30 (0.008)	cc/min (gal/min)
Standard Paint Flow	400 (0.1)	cc/min (gal/min)
Maximum Paint Flow	800 (0.21)	cc/min (gal/min)
Shaping Air Consumption (min-max)	200-900	Nl/min
Bearing Air Consumption	125	Nl/min
Pilot Air Consumption	10	Nl/min
Maximum Air Pressure	7 (101)	bar (psi)
Rotation Speed	65 000	rpm
Voltage Max	80	kV
Current Max	100	µA
ATEX Certification	SB: II 2 G 350 mJ < Ex < 2J
ATEX Certification	ICWB: II 3 G T6 X E > 2J
High Voltage Unit	HVU 8010
High Voltage Control Module	GNM300: II (2) G [350 mJ < Ex < 2J]

Equipment

Designation					Part number
NANOBELL 805 Hollow Wrist - Solvent-Borne High Resistivity					910031760
NANOBELL 805 Hollow Wrist - Solvent-Borne Low Resistivity					910035762
NANOBELL 805 Hollow Wrist - Internal Charge Water-Borne					910031761
NANOBELL 805 - 2K Hollow Wrist - Solvent-Borne High Resistivity					910033017
NANOBELL 805 - 2K Hollow Wrist - Solvent-Borne Low Resistivity					910037278
NANOBELL 805 - 2K Hollow Wrist - Internal Charge Water-Borne					910033018

Accessories

Designation					Part number
Tool Kit Nanobell 801 RBHW / Nanobell 805 with Bell Cup EC35 - Including all necessary maintenance tools					910033145-35
Tool Kit Nanobell 801 RBHW / Nanobell 805 with Bell Cup EC43 - Including all necessary maintenance tools					910033145-43
Tool Kit Nanobell 801 RBHW / Nanobell 805 with Bell Cup EC50 - Including all necessary maintenance tools					910033145-50
Tool Kit Nanobell 801 RBHW / Nanobell 805 with Bell Cup EX65 - Including all necessary maintenance tools					910033145-65
Removal tool for EC35 magnetic bell cup					900005784
Removal tool for EC43 magnetic bell cup					900018693
Removal tool for EC50 magnetic bell cup					900000803
Removal tool for EX65 magnetic bell cup					1204427

Kits

Designation					Part number
Electrical Kit Including: - GNM300 - Low Voltage Cable with connector from GNM300 (18m) - Low Voltage Cable with connector to High Voltage Unit (8m)					910038718
Electrical Kit Including: - GNM300 with Remote Display - Low Voltage Cable with connector from GNM300 (18m) - Low Voltage Cable with connector to High Voltage Unit (8m)					910038719
Electrical Kit Including: - GNM300 - Low Voltage Cable with connector from GNM300 (18m) - Low Voltage Cable with connector to High Voltage Unit (8m) - PROFINET Network Board					910038720
Electrical Kit Including: - GNM300 - BSC300 - Exhaust Microphone Sensor with 20m high flexible cable - Low Voltage Cable with connector from GNM300 (18m) - Low Voltage Cable with connector to High Voltage Unit (8m)					910038132
Electrical Kit Including: - GNM300 - BSC300 - Exhaust Microphone Sensor with 20m high flexible cable - Low Voltage Cable with connector from GNM300 (18m) - Low Voltage Cable with connector to High Voltage Unit (8m) - PROFINET Network Board					910038721
Electrical Kit Including: - GNM300 with Remote Display - BSC300 with Remote Display - Exhaust Microphone Sensor with 20m high flexible cable - Low Voltage Cable with connector from GNM300 (18m) - Low Voltage Cable with connector to High Voltage Unit (8m)					910038722
Electrical Kit Including: - GNM300 w Remote Display - BSC300 w Remote Display - Exhaust Microphone Sensor w 20m high flexible cable - LV Cable w connector from GNM300 (18m) - LV Cable w connector to High Voltage Unit (8m) - PROFINET Network Board					910038723
Electrical Kit Including: - GNM300 - Low Voltage Cable with bare wires from GNM300 (17m) - Junction Box - Low Voltage Cable with bare wires to High Voltage Unit (8m)					910030263
Electrical Kit Including: - GNM300 - BSC300 - Exhaust Microphone Sensor with 20m high flexible cable - Low Voltage Cable from GNM300 to High Voltage Unit (20m) - Ethernet/IP Network Board					910036214
Kit électrique incluant : - GNM300 - BSC300 - Capteur microphone avec câble flexible de 20m - Câble basse tension avec fils à nue pour GNM300 (17m) - Boite de jonction - Câble basse tension avec fils à nue vers l'UHT (8m)					910031938
Kit électrique incluant : - GNM300 - BSC300 - Capteur microphone avec câble flexible de 20m - Câble basse tension du GNM300 vers l'UHT (20 m) - Boite de jonction - Carte réseau Profinet					910036103
Electrical Kit Including: - GNM300 - BSC300 - Exhaust Microphone Sensor with 20m high flexible cable - Low Voltage Cable with bare wires from GNM300 (22m) - Junction Box - Low Voltage Cable with bare wires to High Voltage Unit (4.8m) - Ethercat Network Bo					910035223

Spare Parts

Designation					Part number
EC35 Aluminum bell cup					910000636
EC35 Titanium bell cup					910011188
EC43 Titanium bell cup					910028230
EC50 Aluminum bell cup					910003159
EC50 Titanium bell cup					910008756
Viscobell EX50 Aluminum					910037882
Viscobell EX50 Titanium					910035753
EX65 Aluminum bell cup					910004615
EX65 Titanium bell cup					910009383
Viscobell EX65 Aluminum					910034426
Viscobell EX65 Titanium					910035487
Air shroud 35 NW					900018351
Jupe d'air 43 NW					900021255
Air shroud 50 NW					900018225
Air shroud 65 NW					900018362
High Voltage Unit 6015					910032847
High Voltage Unit 8010					910035324
HVU 287N					910031113
Valve Nano5					910029032S
