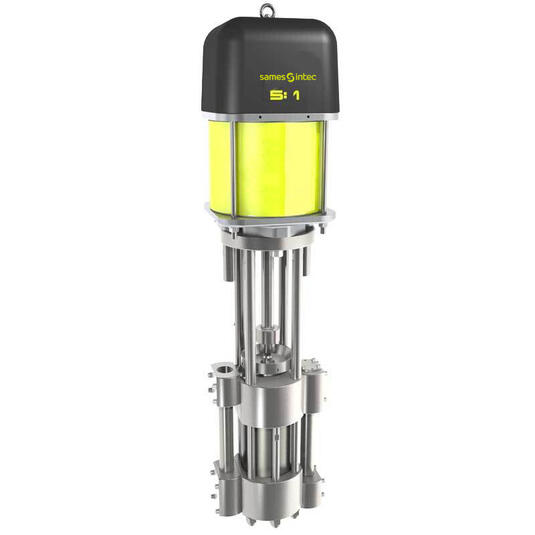

PCS 03C2200 Quatro Airspray Paint Circulating System Pump
4 ball low pressure pump for mixing room optimization
- Ultimate low shear for water-borne
- Highest capacity of the market
- SuperLife(TM) design
| Designation | Value | Unit: metric (US) |
|---|---|---|
| Pressure Ratio | 3 : 1 | |
| Maximum Fluid Pressure | 18 (260.9) | bar (psi) |
| Maximum Air Pressure | 6 (87) | bar (psi) |
| Maximum Temperature | 80 (176) | °C (°F) |
| Cylinder | 2200 (74.4) | cc (oz) |
| Weighted Sound Level | 7200 | dBA |
| Fluid Volume per Cycle | 2200 (74) | cc |
| Free Flow Rate | 132 (34.8) | l/mn (gal/mn) |
| Motor Type | 6000 | |
| Air Inlet | M 3/4" G | |
| Height | 1231 (484.6) | cm (in) |
| Width | 282 (111) | cm (in) |
| Depth | 345 (135.8) | cm (in) |
| Fluid Output at 10 cycles/mn (recommended) | 22 (5.8) | l/mn(gal/mn) |
| Air Consumption at 15 cycles/mn at 4 bar (60 psi) | 34 (20) | m3/h(cfm) |
| Wet Cup, Upper Body, Piston Rod, Cylinder Valve Body, Inlet Tube | ♦ | |
| Weight | 96 (211.6) | kg (lbs) |
| Designation | Product inlet/outlet fittings | Piston Coupling | Sealing packing material | Part number |
|---|---|---|---|---|
| 03C2200 bare pump | ØF 1 | Standard | PE (x2), Viton | 461251300101 |
| 03C2200 bare pump | ØF 1 | Standard | PTFEG/Leather, PE, Viton | 461251300102 |
| 03C2200 bare pump | ØF 1 | Standard | PE/Leather, PE, Viton | 461251300103 |
| 03C2200 bare pump | ØM 45x200 | Standard | PE (x2), Viton | 461251300201 |
| 03C2200 bare pump | ØM 45x200 | Standard | PTFEG/Leather, PE, Viton | 461251300202 |
| 03C2200 bare pump | ØM 45x200 | Standard | PE/Leather, PE, Viton | 461251300203 |
| 03C2200 bare pump | ØF 1 | Hexagon screw | PE (x2), Viton | 461251300301 |
| 03C2200 bare pump | ØF 1 | Hexagon screw | PTFEG/Leather, PE, Viton | 461251300302 |
| 03C2200 bare pump | ØF 1 | Hexagon screw | PE/Leather, PE, Viton | 461251300303 |
| 03C2200 bare pump | ØF 1 | Standard | PE (x2), Viton | 461251300401 |
| 03C2200 bare pump | ØF 1 | Standard | PTFEG/Leather, PE, Viton | 461251300402 |
| 03C2200 bare pump | ØF 1 | Standard | PE/Leather, PE, Viton | 461251300403 |
| Designation | Part number |
|---|---|
| air motor replacement | 105261 |
| air motor seal kit | 105263 |
| sealing packing kit (PE (x2), Viton) | 105766 |
| sealing packing kit (PTFEG/Leather, PE, Viton) | 105947 |
| seal packing kit (PE/Leather, PE, Viton) | 106128 |
| Fluid section replacement (Product ØF 1" 1/4 G - Standard coupling - PE (x2), Viton) | 1051300101 |
| Fluid section replacement (Product ØF 1" 1/4 G - Standard coupling - PTFEG/Leather, PE, Viton) | 1051300102 |
| Fluid section replacement (Product ØF 1" 1/4 G - Standard coupling - PE/Leather, PE, Viton) | 1051300103 |
| Fluid section replacement (Product ØM 45x200 - Standard coupling - PE (x2), Viton) | 1051300201 |
| Fluid section replacement (Product ØM 45x200 - Standard coupling - PTFEG/Leather, PE, Viton) | 1051300202 |
| Fluid section replacement (Product ØM 45x200 - Standard coupling - PE/Leather, PE, Viton) | 1051300203 |
| Fluid section replacement (Product ØF 1" 1/4 G - Hexagon screw coupling - PE (x2), Viton) | 1051300301 |
| Fluid section replacement (Product ØF 1" 1/4 G - Hexagon screw coupling - PTFEG/Leather, PE, Viton) | 1051300302 |
| Fluid section replacement (Product ØF 1" 1/4 G - Hexagon screw coupling - PE/Leather, PE, Viton) | 1051300303 |
| Fluid section replacement (Product ØF 1" 1/4 NPT - Standard coupling - PE (x2), Viton) | 1051300401 |
| Fluid section replacement (Product ØF 1" 1/4 NPT - Standard coupling - PTFEG/Leather, PE, Viton) | 1051300402 |
| Fluid section replacement (Product ØF 1" 1/4 NPT - Standard coupling - PE/Leather, PE, Viton) | 1051300403 |
