PCS 06R440 Circulating Pump Flowmax® Paint Circulating System

The concept of R-type range is to solve common issues of 24/7 paint circulating systems. R-type pumps feature bellow technology and a state of the art lubricant circulation.

High endurance pump for Paint Circulation System

Extended lifetime with active piston cleaning
Quick and simple maintenance with divorced design
Clean paint kitchen with no pain overflow

► Technical manual

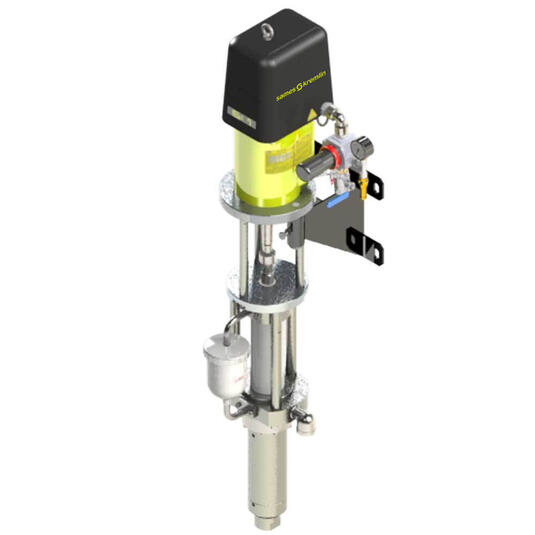

PCS 06R440 Airspray Flowmax

Associated informations

Description

Extended lifetime with active piston cleaning
Quick and simple maintenance with divorced design
Clean paint kitchen with no pain overflow

► Technical manual

PERFORMANCE

♦2 sizes of air motors to deliver the product at the right pressure for high quality finish while reducing air consumption
♦The pump piston is continuously cleaned with pressurized lubricant extending the lifecycle of the pump and reducing maintenance
♦The PCS 06-R440 is a powerful and robust pump has been dubbed "best in class" for endurance & quick & easy maintenance

PRODUCTIVITY

♦Quick & easy maintenance operation due to the detached design of the fluid section
♦Anticipate maintenance operations - visual checking the leak detector or any lubricant color change
♦Wall-mounted air motor design allows easy removal of only the fluid section
♦Optimized space in the paint kitchen

SUSTAINABILITY

♦Increased lifetime due to the permanent circulation of the lubricant under pressure allowing active cleaning of any particles sticking on the piston
♦Extended lifetime - up to 10,000,000 cycles - due to the use of the Sames Bellows instead of a lubricant cup
♦Always clean paint kitchen environment - Bellows prevents any leakage outside the fluid section
♦Optimum wear resistance stainless steel, triple chrome and tungsten carbide construction

The piston is continuously cleaned with pressurized lubricant. This extends the lifecycle of the pump and reduces maintenance.

Technical data table

Designation	Value	Unit: metric (US)
Pressure Ratio	6 : 1
Maximum Fluid Pressure	18 (260.9)	bar (psi)
Maximum Air Pressure	6 (87)	bar (psi)
Maximum Temperature	50 (122)	°C (°F)
Cylinder	440 (14.9)	cc (oz)
Sound Level	78	dBa
Fluid Output at 20 cycles/mn	8.8 (2.3)	l/mn (gal/mn)
Free Flow Rate	26.4 (7)	l/mn (gal/mn)
Air Inlet	F 3/4"BSP
Fluid Outlet	F 3/4" NPS
Fluid Inlet	F 1" NPS
Number of Cycles per liter of products	2.3
Sealing Packing Lower PEHD	♦
Height	133.3 (52.5)	cm (in)
Width	26.5 (10.4)	cm (in)
Depth	32.6 (12.8)	cm (in)
Wetted Parts: Hard Chrome SST, Standard SST, Carbide	♦
Sealing Packing Upper GT or PU	♦
Weight	55 (121.3)	kg (lbs)

Equipment

Designation	Setup	Type of seal	Atomization air regulator	Air regulator fluid pressure	Suction rod	Drain rod Ø6x8	Pump output filter	Part number
PCS 06R440 WALL-MOUNTED - GT/PE SEAL	Wall-Mounted	GT	-	♦	-	-	-	151864100
PCS 06R440 WALL-MOUNTED - PU SEAL	Wall-Mounted	PU	-	♦	-	-	-	151864300

Accessories

Designation	Details	Part number
LUBRICANT T 2 L. DRUM SEE 151260820	2L T Lubricant drum	149990001
KIT OF 3 LUBRICANT T 2L DRUMS PACKAGED	Kit of 3 lubricant drums	151260820

Spare Parts

Designation	Details				Part number
SEAL KIT FOR HYD. 220F	GT seal kit			1	144990090
MAINTENANCE PACK EOS R440	Service kit (GT Seal kit + pump components)			2	144990595
PU SEAL KIT FOR HYDRAULIC 220	PU seal kit			3	144990130
MAINTENANCE KIT - VALVE AND PU SEALS	Service kit (PU Seal kit + Pump components)			4	144990695
CUP 0.6L FOR R440 HYDRAULIC	0.6L cup (including inside circulation) for lubricant			5	144990530
