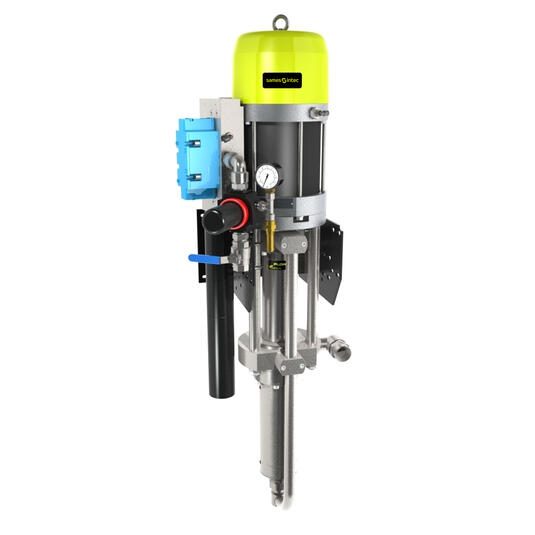

08F440 PCS - Flowmax® Circulating Pump

Maintenance free high flow pump perfect for polyurethane hardener, waterbased or UV paints to supply automatic or paint circulating lines Turbo version prevents ice buildup on continuous operations.

Ultimate pump for Paint Circulation System

Zero maintenance: FLOWMAX® technology
Designed for moisture-sensitive & abrasive materials
Extended lifetime

► Technical manual

Associated informations

Description

Zero maintenance: FLOWMAX® technology
Designed for moisture-sensitive & abrasive materials
Extended lifetime

► Technical manual

Performance:

♦ High output to feed several guns in circulation
♦ High suction power for materials up to 4,000 cps
♦ Turbo air motor also available for continuous 24/7 use

Productivity:

♦ No lubricant cup due to FLOWMAX® Bellows technology - total sealing & dust free
♦ Ideal for moisture-sensitive catalyst & UV products

Sustainability:

♦ Triple chrome piston & cylinder, stainless steel ball & carbide seat for a long-term use
♦ Sleek design with few parts. The inversion system provides a fast changeover for a constant material delivery
♦ Bellows lifetime 10,000,000 cycles - up to 8 years

High reliability - Fluid section isolated from atmosphere.

Technical data table

Designation	Value	Unit: metric (US)
Pressure Ratio	8 : 1
Maximum Fluid Pressure	48 (695.7)	bar (psi)
Maximum Air Pressure	6 (87)	bar (psi)
Air Consumption	25.3 (14.9)	m³/h (cfm)
Maximum Temperature	50 (122)	°C (°F)
Sealing Packing Bellows Polyethylene	♦
Cylinder	440 (14.9)	cc (oz)
Sound Level	76	dBa
Fluid Output at 20 cycles/mn	8.8 (2.3)	l/mn (gal/mn)
Free Flow Rate	26.4 (7)	l/mn (gal/mn)
Air Inlet	F 3/4" BSP
Fluid Outlet	F 3/4" BSP
Fluid Inlet	F 3/4" BSP
Number of Cycles per liter of products	2.3
Sealing Packing Upper and Lower GT polyethylene	♦
Height	110 (43.3)	cm (in)
Width	40 (15.7)	cm (in)
Depth	27 (10.6)	cm (in)
Wetted Parts: Hard Chrome SST, Standard SST, Carbide	♦
Weight	54 (119)	kg (lbs)

Equipment

Designation	Setup	Air regulator fluid pressure	Suction rod	Drain rod	Pump output filter	Part number
08F440 TURBO WALL-MOUNTED	Turbo Wall-Mounted	♦	-	-	-	151861200

Accessories

Designation	Details		Part number
Stainless steel drain rod Ø16 elbowed F18 x 125	SST Drain rod with Ø16 hose and fitting 18x125	1	049596000
Suction rod Ø25 plunging tube length 570 mm	SST Suction rod with Ø25 hose - strainer - 600mm length	2	049597100
Fluid filter 3/4 mesh 12	Product filter 3/4	3	155581400
Trolley Two Reinforced Arms w/o mounting plate	Reinforced cart (2 handles)	4	051231000
Pump bracket			051341206

Documents

Select all documents

Catalog Airspray Range Sames (English version)

Catalog airspray range sames kremlin

Format : application/pdf
Size : 14Mo

Select the document

General Catalog (For North America only) Sames

General Catalog North America

Format : application/pdf
Size : 3Mo

Select the document

Instruction Manuals

Select all documents

08F440 T | User manual

Format : application/pdf
Size : 2Mo

Select the document

Materials

Primer Epoxy

Epoxy primer/sealer is a non-porous finish that is typically recommended as the first base coat over bare steel.

Primer Epoxy Multi-Component

Epoxy primer/sealer multi-component is a non-porous finish base mixed with a hardener that is typically recommended as the first base coat over bare steel.

Primer Polyurethane Multi-Component

Designed to hide profile & surface imperfections, multi-component polyurethane primers & sealers improve adhesion of top coats to the substrate due to the addition of a hardener.

Primer Water-Based

Designed to hide profile & surface imperfections, water-based primers & sealers are environmentally friendly.

CARC Water-Based

Chemical Agent Resistant Coating (CARC) is available in a water-based solution for environmental protection.

CARC Epoxy Multi-Component

Chemical Agent Resistant Coating (CARC) is a paint commonly applied to military vehicles to provide protection against chemical & biological weapons. The surface of the paint is engineered to be easily decontaminated after exposure to chemical warfare & biological warfare agents. The paint is also resistant to damage & removal by decontaminating solutions.

CARC Polyurethane Multi-Component

Chemical Agent Resistant Coating (CARC) can be two-component polyurethane paint commonly applied to military vehicles to provide protection against chemical & biological weapons.

Moisture-Sensitive Polyurethane Multi-Component

Catalyzed polyurethane clear coats and paints are prized for their durability and versatility around the world. They are used on everything from wood cabinetry, mill work and furniture to planes, trains, and automobiles. They are usually mixed with isocyanates in the hardener. The isocyanate component of polyurethane reacts with moisture in the air and form a hard crystalline structure.

UV Material Epoxy Multi-Component

UV-resistant epoxy systems mixed with hardener cure faster & in moist conditions.

UV Material 100% Solid

UV coatings can be formulated up to 100% solids so that they have no volatile component that contributes to pollution.

UV Material Water-Based

Water-based UV coatings can be considered aesthetically equivalent to bi-component acrylic & polyurethane solvent-based coatings. The range is composed of both pigmented & transparent products.

UV Material Epoxy

UV curable epoxy systems do not require the addition of curing agents. They cure within minutes, or even seconds, and have unlimited working times.

UV Material Polyurethane Multi-Component

The UV polyurethane multi-components are especially designed for very strong UV stability. Mixing with hardener gives very high durability & UV resistance.

UV Material Polyurethane

The UV polyurethanes are especially designed for UV stability, The coating is long lasting, offers excellent substrate protection, provides an attractive finish & is user-friendly.

Top Coat Polyurethane Multi-Component

Polyurethane Top Coat is a two- or three-pack isocyanate-cured polyurethane that gives a durable, high gloss finish. Isocyanates included in the hardener are moisture-sensitive & need a specific process for insulating the circuit.

Top Coat Epoxy

Top Coat Epoxys are used for decorative flooring applications, such as Terrazzo flooring, chip flooring & colored aggregate flooring.

Top Coat Epoxy Multi-Component

Two-part epoxy coatings were developed for heavy duty service on metal substrates & use less energy than heat-cured.

Top Coat Water-Based

Water-based polyurethane is popular because of its low odor & low toxicity. It goes on clear without adding a faint color like oil-based versions do & it dries much faster.

Top Coat Polyurethane

Polyurethane Top Coat gives a durable, high gloss finish.

Acid Catalyst Polyurethane Multi-Component

Multi-Component Epoxy Acid Catalyzing (AC) systems require a hardener or catalyst to dry/cure, which works by starting & maintaining the binder's curing process until the chemical reaction is complete. The solvent evaporates prior to & during the chemical reaction concluding a final film of lacquer, paint or filler. The catalyst is moisture-sensitive and requires a Flowmax® technology protection.

Acid Catalyst Epoxy Multi-Component

Multi-Component Epoxy Acid Catalyzing (AC) systems require a hardener or catalyst to dry/cure, which works by starting & maintaining the binder's curing process until the chemical reaction is complete. The solvent evaporates prior to & during the chemical reaction concluding a final film of lacquer, paint or filler. Curing times of AC products can be dramatically accelerated with heat application.
