33F440 PCS - Flowmax® Circulating Pump

The 33F440 pump is dedicated for paint line automatization feeding multiple spray guns simultaneously. This pump provides sufficient power to keep pace with market trends towards increasingly viscous paints.

More Power, More Flow, More Durability!

Used for circulation and multiple guns feeding.
The biggest and most powerful pump of its category.
Flowmax® - Maintenance free technology

product_kremlin_33F440_pump_2.jpg Product Kremlin 33F400 pump 2 No

product_kremlin_33F440_pump_3.jpg Product Kremlin 33F440 pump 3 No

Associated informations

Description

Used for circulation and multiple guns feeding.
The biggest and most powerful pump of its category.
Flowmax® - Maintenance free technology

PERFORMANCE

♦ Supply flowrate up to 7L/min
♦ Stalling free conception for 7/7 intensive usage
♦ High output to feed several guns in circulation.

PRODUCTIVITY

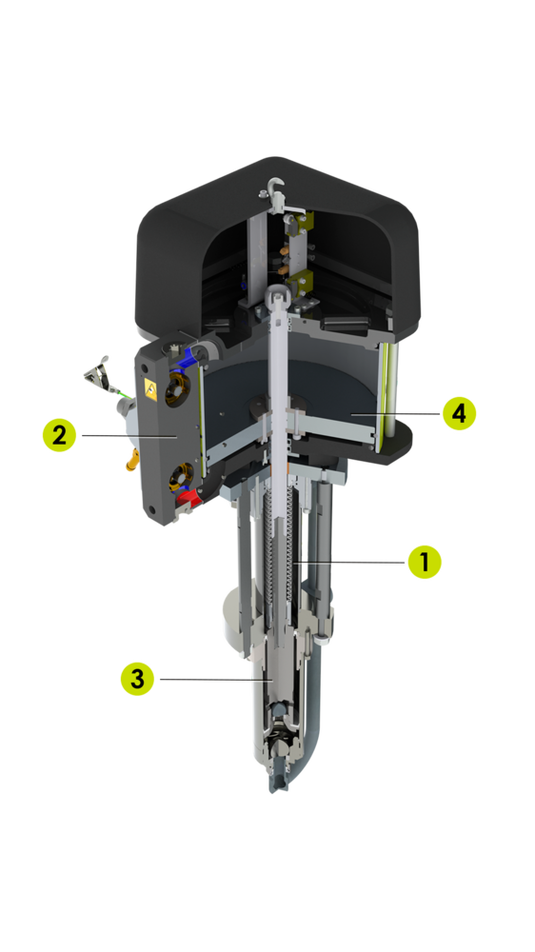

1 Complete sealing with ambient air - dust free construction.
♦ Ideal for moisture-sensitive catalyst
2 Rexson exclusive air motor design prevent icing with external distributor

SUSTAINABILITY

3 Triple chrome piston & cylinder, stainless steel ball & carbide seat for a long-term use.
4 Sleek design with few parts. The inversion system provides a fast changeover for a constant material delivery.
♦ Bellows lifetime 10,000,000 cycles - up to 8 years
♦ Three sealing options for largest material comptatibility

Recognized as a major innovation in fluid handling, Flowmax® piston pumps bring the possibility to handle the widest range of materials on the market including isocyanates, moisture and shear sensitive materials.

The 33F440 fluid section is isolated from atmosphere for high reliability and is having an large volume to simultaneous gun feeding while recirculating.

This pump is avaible in three different versions to meet every market demand, from entry level low options up to fully equipped version with filter, suction rod and air regulation.

Technical data table

Designation	Value	Unit: metric (US)
Pressure Ratio	33/1
Maximum Fluid Pressure	198 (2871)	bar (psi)
Maximum Air Pressure	6 (87)	bar (psi)
Air Consumption	104.5	m³/h (cfm)
Maximum Temperature	50 (122)	°C (°F)
Sealing Packing Bellows Polyethylene	♦
Sound Level	<78	dBa
Fluid Output at 20 cycles/mn	8.8 (2.3)	l/mn (gal/mn)
Free Flow Rate	26.4 (7)	l/mn (gal/mn)
Air Inlet	F 3/4" BSPT
Fluid Outlet	F 3/4" NPS OR M 3/4" JIC
Fluid Inlet	F 1" BSPT OR M26X125
Height	118.8 (46.8)	cm (in)
Width	52.6 (20.7)	cm (in)
Depth	32.8 (12.9)	cm (in)
Wetted Parts: Hard Chrome SST, Standard SST, Carbide	♦
Weight	121 (265)	kg (lbs)

Equipment

Designation								Part number
PUMP 33F440 BARE GT FOR ABRASIVE PAINT								151860800
PUMP 33F440 BARE PU SEALS FOR WATERBONE								151860801
PUMP 33F440 BARE GT POLYVALENT								151860802

Accessories

Designation				Part number
Suction rod Ø25 plunging tube length 570 mm				049597100
Stainless steel drain rod Ø16 elbowed F18 x 125				049596000
Fluid filter 3/4 mesh 12				155581400
PUMP SUPPORT				151590510
HEAVY DUTY TROLLEY				151590650
AIR REGULATOR EQUIPEMENT FOR PUMPS				151590105
Stainless steel Suction rod Ø23 M26 plunging tube length 1000mm elbowed (for 200 liters drums)				149596160

Kits

Designation	Assembling	Suction rod	Filter output	Air supply	Priming hose	Part number
PUMP 33F440 W/M GT POLYVALENT SEALS AIR REG W/O FILTER W/O SUCTION	W/M	-	-	V	-	151860855
PUMP 33F440 GT ABRASIVE W/M AIR REG FILTER SUCTION ROD 200L+DRAIN	W/M	200L D25	V	V	V	151860850
PUMP 33F440 PU W/M AIR REG FILTER SUCTION ROD 200L+DRAIN	W/M	200L D25	V	V	V	151860851
PUMP 33F440 GT POLYVALENT W/M AIR REG FILTER SUCTION ROD 200L+DRAIN	W/M	200L D25	V	V	V	151860852
PUMP 33F440 W/M GT ABRASIVE SEALS AIR REG W/O FILTER W/O SUCTION	W/M	-	-	V	-	151860853
PUMP 33F440 W/M PU SEALS AIR REG W/O FILTER W/O SUCTION	W/M	-	-	V	-	151860854

Spare Parts

Designation				Part number
Seal kit for 9000-100F air motor				997176328
Pneumatic kit				146320094
Seal kit for F440 hydraulic section (GT/GT)				997185502
Full maintenance kit F440 hydraulic section (GT/GT)				144990299
Seal kit for F440 hydraulic section (PU/PU)				144990130
Full maintenance kit F440 hydraulic section (PU/PU)				144990131
NEW GENERATION AIR DISTRIBUTION ASSY - RETROFIT KITT				146372060

Documents

Select all documents

33F440

Format : application/pdf
Size : 1Mo

Select the document

Instruction Manuals

Select all documents

33F440 pump| User Manual

Format : application/pdf
Size : 22Mo

Select the document

9000-100 motor | User manual

Format : application/pdf
Size : 15Mo

Select the document

Fluid section F440 | User manual

Format : application/pdf
Size : 9Mo

Select the document

Muffler 1" | User Manual

Format : application/pdf
Size : 767Ko

Select the document

Materials

Primer Epoxy

Epoxy primer/sealer is a non-porous finish that is typically recommended as the first base coat over bare steel.

Primer Epoxy Multi-Component

Epoxy primer/sealer multi-component is a non-porous finish base mixed with a hardener that is typically recommended as the first base coat over bare steel.

Primer Polyurethane Multi-Component

Designed to hide profile & surface imperfections, multi-component polyurethane primers & sealers improve adhesion of top coats to the substrate due to the addition of a hardener.

Primer Water-Based

Designed to hide profile & surface imperfections, water-based primers & sealers are environmentally friendly.

Primer Polyurethane

Designed to hide profile & surface imperfections, polyurethane primers & sealers promote adhesion of top coats to the substrate.

Moisture-Sensitive Polyurethane Multi-Component

Catalyzed polyurethane clear coats and paints are prized for their durability and versatility around the world. They are used on everything from wood cabinetry, mill work and furniture to planes, trains, and automobiles. They are usually mixed with isocyanates in the hardener. The isocyanate component of polyurethane reacts with moisture in the air and form a hard crystalline structure.

UV Material 100% Solid

UV coatings can be formulated up to 100% solids so that they have no volatile component that contributes to pollution.

UV Material Water-Based

Water-based UV coatings can be considered aesthetically equivalent to bi-component acrylic & polyurethane solvent-based coatings. The range is composed of both pigmented & transparent products.

UV Material Polyurethane

The UV polyurethanes are especially designed for UV stability, The coating is long lasting, offers excellent substrate protection, provides an attractive finish & is user-friendly.

Top Coat Polyurethane Multi-Component

Polyurethane Top Coat is a two- or three-pack isocyanate-cured polyurethane that gives a durable, high gloss finish. Isocyanates included in the hardener are moisture-sensitive & need a specific process for insulating the circuit.

Top Coat Epoxy

Top Coat Epoxys are used for decorative flooring applications, such as Terrazzo flooring, chip flooring & colored aggregate flooring.

Top Coat Water-Based

Water-based polyurethane is popular because of its low odor & low toxicity. It goes on clear without adding a faint color like oil-based versions do & it dries much faster.

Top Coat Polyurethane

Polyurethane Top Coat gives a durable, high gloss finish.

Acid Catalyst Polyurethane Multi-Component

Multi-Component Epoxy Acid Catalyzing (AC) systems require a hardener or catalyst to dry/cure, which works by starting & maintaining the binder's curing process until the chemical reaction is complete. The solvent evaporates prior to & during the chemical reaction concluding a final film of lacquer, paint or filler. The catalyst is moisture-sensitive and requires a Flowmax® technology protection.

Metallic Water-Based

Polyurethane water-based coatings offer a very high chemical/physical resistance & steel effect & are environmentally friendly.
