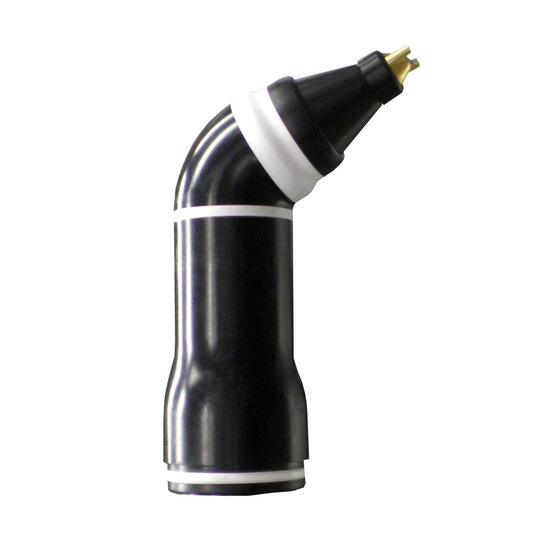

PPH707 MS-GUN Robotic multi-process atomizer for solvent-based material
- Easy to switch process
- For validations of Bell/Gun on site
Performance
Productivity
Sustainability

| Designation | Value | Unit: metric (US) |
|---|---|---|
| Maximum Material Pressure | 10 | bar (psi) |
| Standard Material Supply Pressure | 6 - 8 | bar (psi) |
| Maximum Paint Flow | 1000 | cc/min (gal/min) |
| Standard Paint Flow | 400 | cc/min (gal/min) |
| Minimum Paint Flow | 100 | cc/min (gal/min) |
| Maximum Air Pressure | 6 | bar (psi) |
| Transfer Ratio | 85 | % |
| Paint Resistivity (min-max) | >3 | MOhm.cm |
| High Voltage (maximum) | 100 | kV |
| Viscosity Scale (min-max) | 14 - 60 | seconds FORD Cup#4 |
| ATEX Certification | II 2 G 350 mJ < Ex < 2J | |
| High Voltage Unit | UHT157 | |
| High Voltage Control Module | GNM200/GNM300: II (2) G [350 mJ < Ex < 2J] |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| PPH 707 MS-Gun Airspray | 910016629 | ||||
| PPH 707 MS-Gun | 910006755 |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| Tool Kit Case | 910029366 |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| Complete elbow assembly PPH 707 Gun | 910006756SAV | ||||
| Complete elbow assembly PPH 707 Bell | 910004455SAV | ||||
| Electric kit : GNM200 220V + low voltage cable + BSC 300 + microphone | 910027015 | ||||
| Electric kit : GNM200 110V + low voltage cable + BSC 300 + microphone | 910027248 |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| MICROVALVE D6 | White cover - Orange indicator | 1507375 | |||
| NANOVALVE | White cover - Orange indicator | 1510004 | |||
| O-RING KIT (Gun or turbine side) | 14 seals | 910003415 | |||
| O-RING KIT (QUICK DISCONNECT PLATE) | 26 seals | 910003416 |
