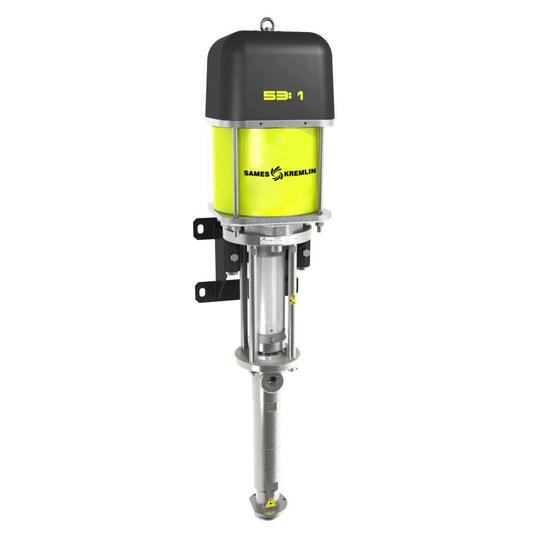

Sames | REXSON 53C216 Extrusion Pump

Description

Technology breakthrough
Ergonomically designed for increased productivity
Cost reduction

► Technical manual

Performance

♦Optimal fluid passage hydraulic design for low shearing

Productivity

♦Wide selection of follower plate sizes to fit a wide range of pails and drums
♦Quiet air motor for better work conditions

Sustainability

♦External valve accessibility for easy maintenance
♦Wide selection of cartridges for easy replacement: PE, PE+PTFE, and PE+Leather

Sames offers a wide range of elevators, filters, regulators, follower plates, guns and hoses to suit your application needs.

Technical data table

Designation	Value	Unit: metric (US)
Pressure Ratio	53:1
Maximum Fluid Pressure	318 (4612)	bar (psi)
Maximum Air Pressure	6 (87)	bar (psi)
Maximum Temperature	60 (140)	°C (°F)
Weighted Sound Level	70	dBA
Fluid Volume per Cycle	216	cc
Free Flow Rate	12.9	l/mn (gal/mn)
Fluid Output at 15 cycles / mn	3.3	l/mn (gal/mn)
Air Consumption at 30 cycles/mn at 4 bar (60 psi)	102	m³/h (cfm)
Seal Packings	PTFE+PE
Wetted Parts: Carbon Steel	•
Weight	51 (112)	kg (lbs)

Documents

Select all documents

High Viscosity Catalog

Format : application/pdf
Size : 6Mo

Select the document

REXSON Pumps configurator Lite

Format : application/vnd.openxmlformats-officedocument.spreadsheetml.sheet
Size : 458Ko

Select the document

Instruction Manuals

Select all documents

Materials

Grease Graphite

Solid lubricating additives, including graphite, are added to some grease to improve its lubricating properties.

Grease Silicone

Silicone grease is commonly used for lubricating & preserving rubber parts, such as O-rings. Additionally silicone grease does not swell or soften the rubber, which can be a problem with hydrocarbon-based grease. It functions well as a corrosion-inhibitor & lubricant for purposes that require a thicker lubricant. Thermal grease often consists of a silicone grease base along with added thermally conductive fillers. It is used for heat transfer abilities rather than friction reduction.

Silicone Two-Component Sealant

Silicone sealants can be used in two or three components for increasing mechanical capabilities.

Silicone Sealant

Silicone sealants are used to protect & seal anything from the smallest silicon chip to the world's tallest skyscrapers.

Polyurethane Sealant

Polyurethane Sealant is abrasion resistant, odorless, remains flexible at low temperatures & is 100% urethane. It's quick & simple to use with its fast-setting capabilities that help to reduce downtime. The balanced, low-viscosity liquid components form an easy-to-use paste.

Polyurethane Sealant with Accelerator

Accelerator speeds up the setting process for 1K sealant to achieve rapid rain resistance & thorough setting of the accelerated foundation sealant.

Polyurethane Two-Component Sealant

Polyurethane Two-Component Sealant can be used in two or three components for increasing mechanical & chemical capabilities.

MS Polymer Sealant

Silyl modified polymers (SMP, also silane-modified polymers, silane-terminated polymers) are polymers (large, chained molecules) terminating with a silyl (SiH3) group. SMPs are the main components in solvent-free & isocyanate-free sealant and adhesive products. Typically the sealant products manufactured with silyl modified polymers have good adhesion on a wide range of substrate materials, and have good temperature & UV resistance.

Hybrid Sealant

Today polyurethane & silicone sealants are considered "high performance products." They deliver a significant adhesion, a good movement capability & are durable. However, these high performance products do have their limitations & disadvantages.

Adhesive Polyurethane

Polyurethane (PU or PUR for short) is not a single material with a fixed composition, but instead a range of chemicals sharing similar chemistry. It is a polymer composed of organic chain units joined by urethane or carbamate links. Most polyurethanes are thermosetting polymers & do not melt when heated unlike thermoplastic polyurethanes which do.

Adhesive Polyurethane Multi-Component

Two-component polyurethanes (also called 2C PUR) have the advantages of single component polyurethane adhesives, but cure more quickly through larger gaps & are not dependent on moisture/heat for curing.

Adhesive Epoxy

Epoxy adhesives, dependent upon the specific chemistry of the system & nature of the cross-linking available, adhere to a wide variety of materials. Some of the most important performance requirements include exceptional chemical & heat resistance, excellent adhesion & water resistance, as well as satisfactory mechanical & electrical insulating properties.

Adhesive Epoxy Multi-Component

Two-component epoxies feature unique versatility in application & performance. These systems consist of a resin & a hardener that can be formulated to offer a wide range of mechanical, thermal, optical & electrical properties.
