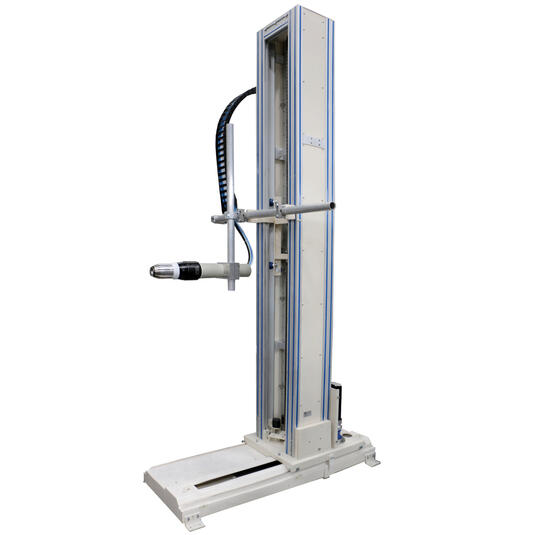

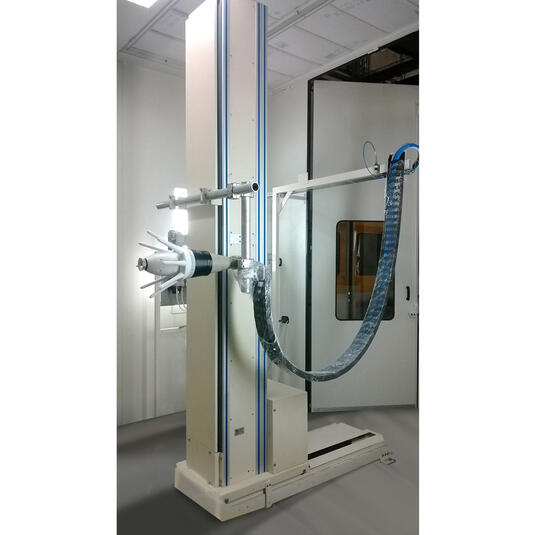

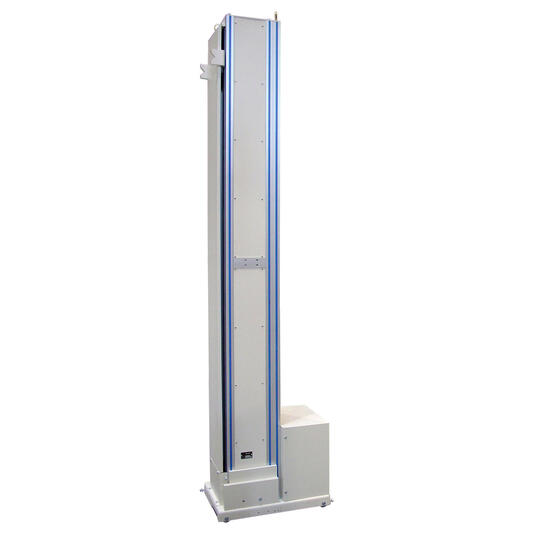

The RFV reciprocator 2000 is intended to serve automatic installations for liquid.
It is capable of the following applicator configurations:
The RVF 2000 reciprocator is controlled by a control module REV 800 or MCR or a PLC for a more complex automatic facility.
The gauge axis, hand operated or powered, is available as an option.
The RFV reciprocator 2000 is intended to serve automatic installations for liquid.
It is capable of the following applicator configurations:
The RVF 2000 reciprocator is controlled by a control module REV 800 or MCR or a PLC for a more complex automatic facility.
The gauge axis, hand operated or powered, is available as an option.
♦Extremely simple construction and operation (very long service life).
| Designation | Value | Unit: metric (US) |
|---|---|---|
| Electrical Power | 220 | V |
| Weight | 230000 | g (oz) |
| ATEX Certification | II 2 G c IIB T4 |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| RFV 2000 liquid paint - stroke 200 cm | 910006928-200 | ||||
| RFV 2000 liquid paint - stroke 80 < xx0 < 340 | 910006928-xxx |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| 2 guiding rails & fixing pins | 1525228 | ||||
| Optional cable tray kit for hose length < 200 cm | 1514325 | ||||
| Optional cable tray kit for hose length > 200 cm | 1525208 | ||||
| Tube to fix sprayer on RFV | 744097 |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| REV 821: REV800 + 2xRFV2000 + cable for liquid paint - stroke 200 cm | 910002371 | ||||
| REV 811: REV800 + 1xRFV2000 + cable for liquid paint - stroke 200 cm | 910002370 |
