| Designation | Value | Unit: metric (US) |
|---|---|---|
| Maximum Fluid Pressure | 6 (87) | bar (psi) |
| Maximum Fluid Outlet | 180 (6.3) | cc/min (oz/min) |
| Minimum Fluid Outlet | 86 (3) | cc/min (oz/min) |
| Maximum Air Pressure | 6 (87) | bar (psi) |
| Recommended Air Pressure (min) | 3 (43.5) | bar (psi) |
| Air Consumption | 9.5 (5.6) | m3/h (cfm) |
| Transfer Efficiency | 53 | % |
| Maximum Fluid Temperature | 50 (122) | °C (°F) |
| Air Inlet | M 1/4" NPS | |
| Fluid Inlet | M 1/4" NPS | |
| Polished Forged Aluminum Body | ♦ | |
| Wetted Parts, Stainless Steel | ♦ | |
| Ph | 5 - 8 | |
| Weight | 595 (21) | g (oz) |
| Designation | Max Fluid viscosity (CA 4) | Projector | Nozzle size | Air Consumption | Fluid Output | Fan width at 20cm (8in) | Cup | Part number |
|---|---|---|---|---|---|---|---|---|

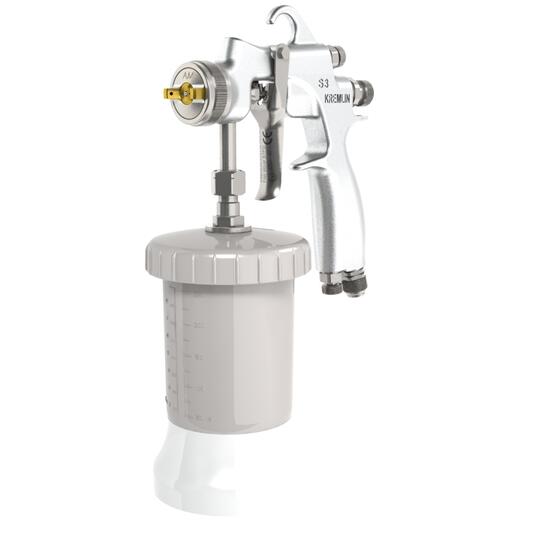

| S3 Suction | - | - | - | - | - | - | PeHD 0.25L (Grey) | 136150200 |
| S3 Suction | 14 - 20 s | 08 AM | 0.8 mm (0.031 in) | 12.9 m3/h (7.6 cfm) | 86 cc/mn (2.9 oz/mn) | 15 cm (5.9 in) | PeHD 0.25L (Grey) | 136150208 |
| S3 Suction | 20 - 30 s | 10 AM | 1.0 mm (0.039 in) | 12.9 m3/h (7.6 cfm) | 132 cc/mn (4.5 oz/mn) | 17 cm (6.7 in) | PeHD 0.25L (Grey) | 136150209 |
| S3 Suction | 30 - 40 s | 12 AM | 1.2 mm (0.047 in) | 12.9 m3/h (7.6 cfm) | 159 cc/mn (5.4 oz/mn) | 19 cm (7.5 in) | PeHD 0.25L (Grey) | 136150210 |
| S3 Suction | 30 - 40 s | 15 AY | 1.5 mm (0.059 in) | 14.1 m3/h (8.3 cfm) | 180 cc/mn (6.1 oz/mn) | 20 cm (7.9 in) | PeHD 0.25L (Grey) | 136150211 |
| Designation | Max Fluid viscosity (CA 4) | Aircap | Nozzle size | Needle | Compatibility | Air Consumption | Fluid Output | Fan width at 20cm (8in) | Part number | |
|---|---|---|---|---|---|---|---|---|---|---|
| PROJECTOR | 14 - 20 s | AM | 0.8 mm (0.031 in) | 0.8 | - | 12.9 m3/h (7.6 cfm) | 86 cc/mn (2.9 oz/mn) | 15 cm (5.9 in) | 1 | 031150008 |
| PROJECTOR | 20 - 30 s | AM | 1.0 mm (0.039 in) | 1.0 | - | 12.9 m3/h (7.6 cfm) | 132 cc/mn (4.5 oz/mn) | 17 cm (6.7 in) | 2 | 031150009 |
| PROJECTOR | 30 - 40 s | AM | 1.2 mm (0.047 in) | 1.2 | - | 12.9 m3/h (7.6 cfm) | 159 cc/mn (5.4 oz/mn) | 19 cm (7.5 in) | 3 | 031150010 |
| PROJECTOR | 30 - 40 s | AY | 1.5 mm (0.059 in) | 1.5 | - | 14.1 m3/h (8.3 cfm) | 180 cc/mn (6.1 oz/mn) | 20 cm (7.9 in) | 4 | 031150011 |
| AIRCAP | - | AM | - | - | - | - | - | - | 5 | 132630400 |
| AIRCAP | - | AY | - | - | - | - | - | - | 6 | 132630200 |
| NEEDLE | - | - | - | 0.8 | nozzle 0.8 | - | - | - | 7 | 033150100 |
| NEEDLE | - | - | - | 1.0 | nozzle 1.0 | - | - | - | 8 | 033150500 |
| NEEDLE | - | - | - | 1.2 | nozzle 1.2 | - | - | - | 9 | 033150200 |
| NEEDLE | - | - | - | 1.5 | nozzle 1.5 | - | - | - | 90 | 033150400 |
| NOZZLE 08 | 14 - 20 s | - | 0.8 mm (0.031 in) | - | aircap AM | - | - | - | 91 | 134630400 |
| NOZZLE 10 | 20 - 30 s | - | 1.0 mm (0.039 in) | - | aircap AM | - | - | - | 92 | 134630100 |
| NOZZLE 12 | 30 - 40 s | - | 1.2 mm (0.047 in) | - | aircap AM | - | - | - | 93 | 134630200 |
| NOZZLE | 30 - 40 s | - | 1.5 mm (0.059 in) | - | aircap AY | - | - | - | 94 | 134630300 |
| Designation | Details | Part number | |
|---|---|---|---|
| PACKAGE OF SEALS S3 GUN | PACKAGE OF SEALS S3 GUN | 1 | 129150901 |
| SERVICING KIT S3 GUN | SERVICING KIT S3 GUN | 2 | 129150902 |
| SUCTION CUP FOR S3 | SUCTION CUP FOR S3 | 3 | 138390000 |
| BAG OF 4 FILTERS | BAG OF 4 FILTERS | 4 | 138310300 |
| 5 NON-DROP PACKET | 5 NON-DROP PACKET | 5 | 139270210 |
