Sames | TRP501 Automatic electrostatic spray gun

Description

High paint savings
Increased productivity
Simplified maintenance
Easy to use

Performance

♦ High transfer efficiency compared to conventional gun
♦ Heavy duty piston for extended life of trigger
♦ Integrated High voltage cascade

Productivity

♦ Remotely controlled gun parameters
♦ Fan or vortex pattern
♦ Quick disconnect

Sustainability

♦ Integrated supply & dump circuits
♦ Insulated support device

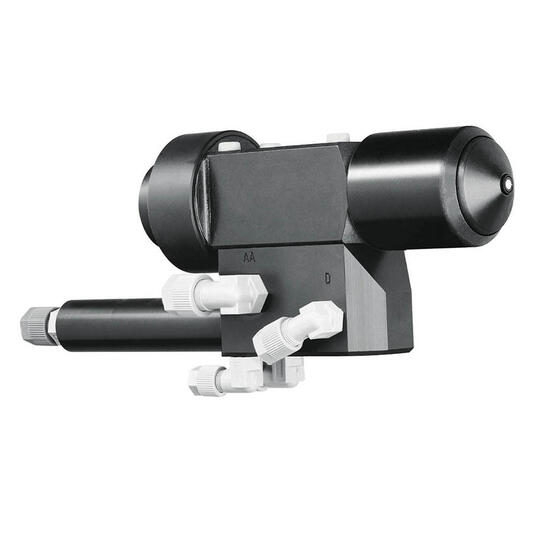

TRP 501 sprayer allows the application of solvent or waterbase liquid paints in automotive and general industry. It ensures a perfect finishing combined with significant paint savings. The additional benefit of the TRP 501 is to apply very high flow rates (up to 800 cm3/min in some configurations).

The TRP 501 gun is light, compact and has a quite flexible use. Its simple and robust design makes
it extremely reliable. For more than 35 years, TRP 501 gun has been the reference in the world of automotive finishing, often copied but never equalled.

Available with fan spray and super vortex spray (8 & 12 mm / .31 & .47 in)

Technical data table

Designation	Value	Unit: metric (US)
Maximum Fluid Pressure	6 (87)	bar (psi)
Maximum Fluid Outlet	800 (27)	cc/min (oz/min)
Minimum Fluid Outlet	100 (3)	cc/min (oz/min)
Maximum Air Pressure	6 (87)	bar (psi)
Air Consumption	7 - 40 (4 - 23)	m3/h (cfm)
Transfer Efficiency	50 - 60	%
Trigger Air Pressure	5 (75)	bar (psi)
High Voltage (maximum)	100	kV
ATEX Certification	II 2 G EEx > 350 mJ
High Voltage Unit	UHT180 / UHT188
High Voltage Control Module	GNM200: II (2) G [350 mJ < Ex < 2J]

Equipment

Designation	Spray type	Nozzle size	Part number
TRP set	Flat	-	910014590
TRP set	Round Super vortex	12 mm (.472 in)	910014588
TRP set	Round Super vortex	8 mm (.315 in)	910014589
TRP 501 00D round spray ø12 ATEX for water based paint			910036110
TRP 501 00D round spray ø8 ATEX for waterbased paint			910036111
TRP 501 00D fan spray ATEX for waterbased paint			910036112

Accessories

Designation					Part number
TRP 502 ( twin) High Voltage kit for water based paint					910014595
TRP 501 (single) High Voltage kit for water based paint					910014594
TRP 501 paint regulator for single gun					750016
TRP 502 (twin) High Voltage kit for solvent based paint					910014593
TRP 501 (single) High Voltage kit for solvent based paint					910014592
Measure 'test aircaps'					437257
TRP 500 nut for flat spray nozzle					745066
TRP 500 nut for round spray nozzle					749982

Kits

Designation					Part number
TRP 501 00D round spray ø12 waterbased paint + support + nut ATEX					910036113
TRP 501 00D round spray ø8 for waterbased paint + support + nut ATEX					910036114
TRP 501 00D fan spray for waterbased paint + support + nut ATEX					910036115

Spare Parts

Designation	Spray type	Material	Nozzle size	Part number
TRP 500 aircap / nozzle	Flat	Stainless steel / brass	1.2 mm (.047 in)	428376
TRP 500 aircap / nozzle	Flat	Stainless steel / brass	1.5 mm (.059 in)	429063
TRP 500 complete nozzle / single circuit	Flat	Stainless steel	1.2 mm (.047 in)	428375
TRP 500 complete nozzle / single circuit	Flat	Stainless steel	1.5 mm (.059 in)	429064
TRP 500 nozzle injector / single circuit	Flat	Stainless steel	1.1 mm (.043 in)	730355
TRP 500 nozzle injector / single circuit	Flat	Stainless steel	1.2 mm (.047 in)	755287
TRP 500 nozzle injector / single circuit	Flat	Stainless steel	1.5 mm (.059 in)	439058
TRP 500 aircap	Flat standard	Plastic	-	436939
TRP 500 aircap	Flat wide pattern	Plastic	-	422513
TRP 500 aircap	Flat wide pattern	Brass	-	Contact us
TRP 500 nozzle / twin circuit	Flat		1.5 mm (.059 in)	752055
TRP 500 aircap	Round	Plastic	12 mm (.472 in)	430179
TRP 500 aircap	Round	Plastic	6 mm (.236 in)	430804
TRP 500 aircap	Round	Plastic	8 mm (.315 in)	430540
TRP 500 injector (by 5)	Round		12 mm (.472 in)	455236#
TRP 500 injector (by 5)	Round		6 mm (.236 in)	455234#
TRP 500 injector (by 5)	Round		8 mm (.315 in)	455235#
TRP 500 nozzle (Vortex) without injector	Round		-	752983
TRP 500 sparying head alone	Round		12 mm (.472 in)	752992
TRP 500 spraying head alone	Flat		-	752949
TRP 500 spraying head alone	Round		8 mm (.315 in)	752991
