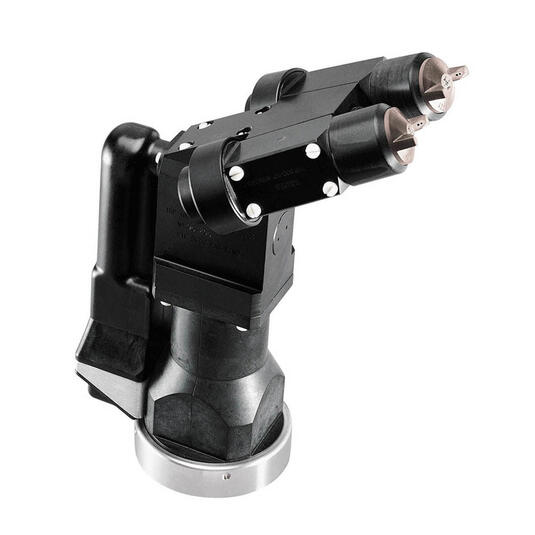

For more than 35 years, the TRP gun has been the standard in the world of automotive finishing, often
copied but never equaled.
| Designation | Value | Unit: metric (US) |
|---|---|---|
| Material | Liquide | |
| Maximum Material Pressure | 10 | bar (psi) |
| Standard Material Supply Pressure | 6 - 8 | bar (psi) |
| Maximum Paint Flow | 1200 | cc/min (gal/min) |
| Standard Paint Flow | 800 | cc/min (gal/min) |
| Minimum Paint Flow | 200 | cc/min (gal/min) |
| Maximum Air Pressure | 6 | bar (psi) |
| Air Consumption | 14 - 80 | m3/h |
| Transfer Ratio | 30 - 60 | % |
| Paint Resistivity (min-max) | >3 | MOhm.cm |
| High Voltage (maximum) | 100 | kV |
| Viscosity Scale (min-max) | 14 - 60 | seconds FORD Cup#4 |
| ATEX Certification | II 2 G EEx > 350 mJ | |
| High Voltage Unit | UHT152 | |
| High Voltage Control Module | GNM200: II (2) G [350 mJ < Ex < 2J] |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| TRP 502 SP SR QD | 910019846 |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| High voltage unit UHT 152EEx e | 1511102 | ||||
| Flange for YASAKWA robots | 910036294 |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| TRP 500 JP Restr.1.2 Inj.12 HEAVY DUTY | 910019850 | ||||
| TRP 500 JP Restr.1.4 Inj. 1.5 HEAVY DUTY | 910019888 | ||||
| TRP 500 JP Restr.1.2 Inj. 8 HEAVY DUTY | 910019848 |
| Designation | Part number | ||||
|---|---|---|---|---|---|
| MICROVALVE D6 Dual Circuit | 1506729 | ||||
| MICROVALVE D6 Single Circuit | 1507375 |
